OH02B10 1/7.5" CMOS 2 Megapixel (1500 x 1500) Image Sensor with PureCel®Plus-S Technology
1/7.5" 2‑Megapixel (1500 x 1500) CMOS Image Sensor with PureCel®Plus‑S Technology
  • SKU
    OH02B10
  • Package
    CSP

1/7.5" CMOS 2‑Megapixel (1500 x 1500) Image Sensor with PureCel®Plus‑S Technology

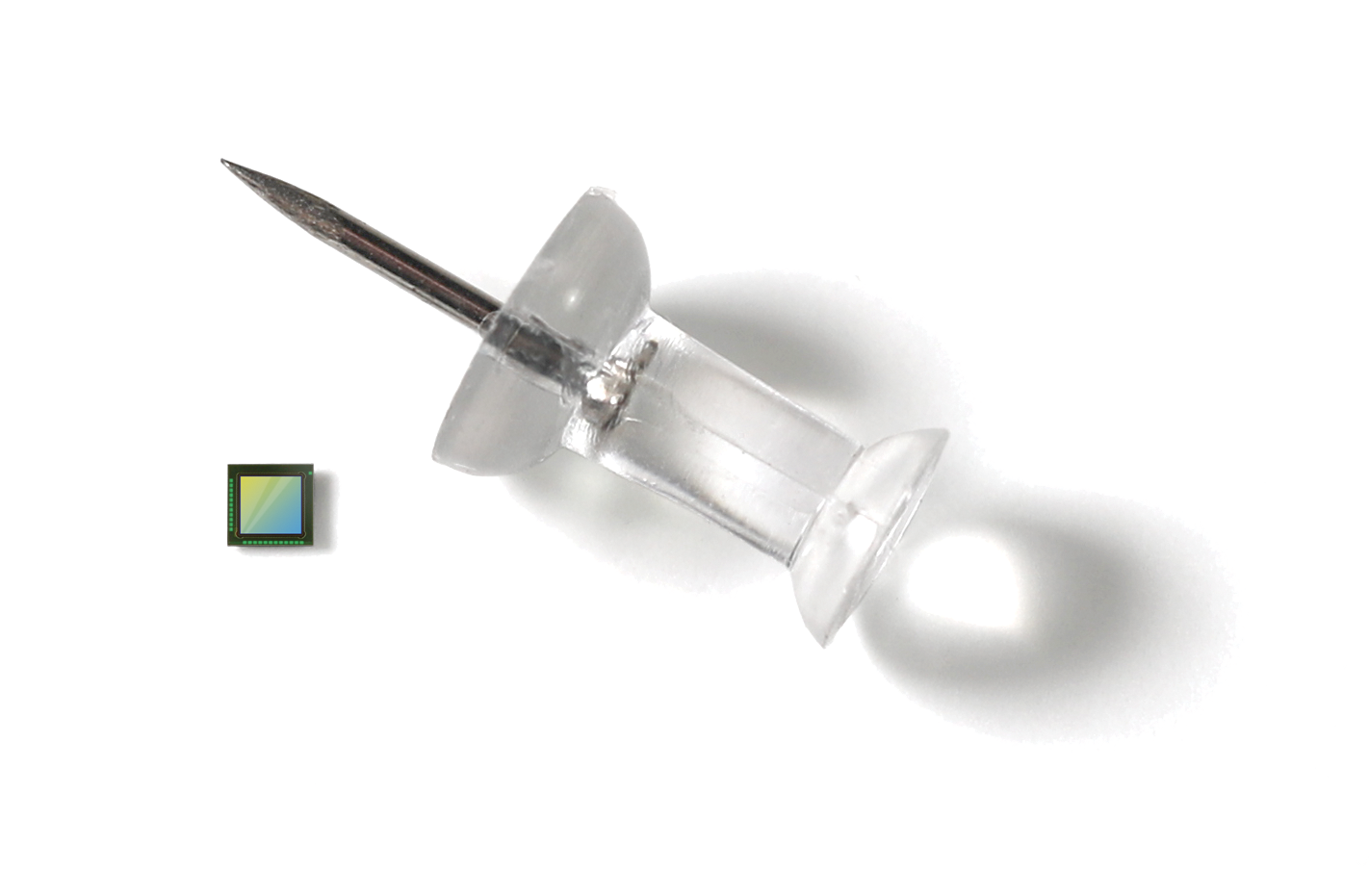

OH02B10 is a square 2‑megapixel (MP) (1500 x 1500) resolution CMOS image sensor for gastrointestinal, ENT, orthopedic, surgical, dental, and veterinarian reusable and disposable endoscopes, catheters, and guide wires. The miniature square form factor of the OH02B10 saves space for higher resolution in smaller designs. It allows endoscopes to have a smaller outer diameter (6 mm) or larger working channels for advanced endoscope designs. The OH02B10 is based on OMNIVISION’s latest PureCel®Plus‑S stacked-die technology, enabling high functionality in the smallest possible die size.

OH02B10 1/7.5-inch CMOS 2-Megapixel (1500 x 1500) Image Sensor with PureCel®Plus-S Technology for Medical Cameras

The OH02B10 is available in the OCH2B10 CameraCubeChip® package that features a small 2.5 mm x 2.5 mm size with exceedingly high image quality for disposable endoscope designs. The OH02B10 is autoclavable and does not require tuning or calibration.

November 8, 2022: OMNIVISION Announces First Miniature 2 Megapixel CMOS Image Sensor in Square Format for Disposable and Reusable Endoscopes

Automatic black level calibration (ABLC)

Programmable controls for:
– Frame rate
– Mirror and flip
– Binning
– Cropping
– Windowing

Support for dynamic DPC

Supports output formats:
– 10-bit RGB non-HDR

Supports horizontal and vertical subsampling

Supports typical images sizes:
– 1500 x 1500
– 960 x 540
– 1280 x 720
– 640 x 480

AntLinx™ (4-wire) interface with speeds up to 1.6 Gbps

Standard serial SCCB interface

HDR support:
– Stagger HDR 2 exposure timing

Two on-chip phase lock loops (PLLs)

Built-in temperature sensor

1.116 μm x 1.116 μm pixel

  • Spec
    OH02B10
  • Analog / Digital
    Digital
  • Category
    2MP to 5MP
  • CFA (Chroma)
    Color
  • Frame Rate
    Full @ 60 fps
  • Image Area
    1691.856 x 1691.856 μm
  • Interface
    AntLinx™
  • Optical Format
    1/7.5"
  • Output Format
    10-bit RGB RAW
  • Package
    CSP
  • Pixel Size
    1.116 µm
  • Power Requirement
    Standby: 650 µA
  • Resolution
    2MP
  • Shutter Type
    Rolling Shutter
  • Technology
    AntLinx™, PureCel®Plus‑S
  • Use Case
    Brain / Eyes / Heart / Spine - Angioscope, Brain / Eyes / Heart / Spine - Encephaloscope, Brain / Eyes / Heart / Spine - Neuroendoscope, Brain / Eyes / Heart / Spine - Ophthalmoscope, Brain / Eyes / Heart / Spine - Spinoscope, Ear / Nose / Throat and Airway Management - Bronchoscope, Ear / Nose / Throat and Airway Management - Esophagoscope, Ear / Nose / Throat and Airway Management - Laryngoscope, Ear / Nose / Throat and Airway Management - Mediastinoscope, Ear / Nose / Throat and Airway Management - Otoscope, Ear / Nose / Throat and Airway Management - Pleuroscope, Ear / Nose / Throat and Airway Management - Rhinoscope, Ear / Nose / Throat and Airway Management - Thoracoscope, Musculo-skeletal - Arthroscope, Stomach and Intestine - Colonoscope, Stomach and Intestine - Duodenoscope, Stomach and Intestine - Gastroscope, Stomach and Intestine - Laparoscope, Stomach and Intestine - Proctoscope, Urology and Gynaecology - Amnioscope, Urology and Gynaecology - Choledochoscope, Urology and Gynaecology - Cystoscope, Urology and Gynaecology - Hysteroscope, Urology and Gynaecology - Nephroscope, Urology and Gynaecology - Utero-renoscope
  • Operating Temperature
    -30°C to +85°C
