LCOS Panel Driver
  • SKU
    OVP0921-B44G
  • Package
    144-pin BGA

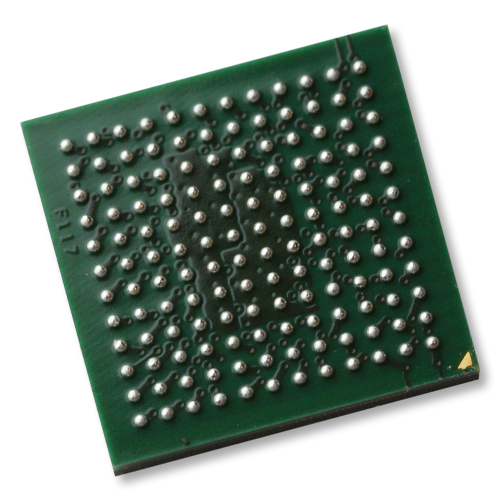

Custom Controller ASIC Designed for OMNIVISION LCOS Panels

The OVP921 companion chip is a custom controller ASIC designed to drive OMNIVISION’s single panel, color field sequential LCOS panels. The OVP921 provides enhanced system performance without the need for an external image processor.

The OVP921 integrates a host of features that simplify system design, while saving both space and power. The OVP921 has built-in keystone correction, frame rate conversion, video input scaling, an LED controller, and an embedded 8051 microcontroller (MCU).

The OVP921 can accept inputs via 24‑bit RGB, MIPI or USB.

January 9, 2013: OMNIVISION Launches Cost-Effective, High-Performance HD LCOS Solution for Pico Projection Systems

October 13, 2013: OMNIVISION Releases OmniGlass™ Reference Design for Fast-Growing Wearable Electronics Market

January 7, 2015: OMNIVISION and ASTRI Collaborate to Produce Heads-Up Display for Next Generation Automotive Applications

January 7, 2016: OMNIVISION and ASTRI’s New Heads Up Display (HUD) Delivers Clear Information to the Driver’s Line-of-Sight

February 22, 2016: OMNIVISION’s High Definition LCOS Solution Brings Immersive Viewing to Vuzix’ iWear Wireless Video Headphones

OVP921 will drive OMNIVISION’s color field sequential LCOS panels with resolutions up to 1280 x 720

Includes two video inputs:
– Single pixel 24-bit RGB
– 2 channel MIPI DSI receiver 24-bit packed RGB888

Includes dual internal PLL clock generation

Outputs enable/disable control signals to external solid state light sources

Supports horizontal and vertical flipping and programmable sync polarities

Supports several video scaling functions

Converts incoming video to fixed resolution of LCOS panel

±15 degree vertical keystone correction

Includes on-chip 8051 microcontroller with 32 KB program space and 256 bytes RAM

  • Spec
    OVP921
  • Active Area
    n/a
  • Category
    Panel Drivers
  • Color Field Rate
    300 Hz
  • Frame Rate
    Full @ 60 fps
  • Operating Temperature
    0°C to +70°C
  • Package
    BGA, WLCSP
  • Panel Dimensions
    9 x 9 mm (BGA) 6.89 x 6.24 mm (WLCSP)
  • Pixel Size
    n/a
  • Power Consumption
    330 mW
  • Power Requirement
    1.2V: 210 mW (at max resolution)3.3V: 120 mW
  • Power Supply
    Core: 1.2V typical, I/O: 1.8V / 3.3V
  • Resolution
    n/a
  • Scaler
    Built-in
  • Use Case
    AR Applications - LCOS for display
  • Video Input
    MIPI RGB or USB
